Product and Mounting Dimensions – Fan Unit
Duct Size: 10″
Total Dimensions: 9.81 x 15.20 x 11.30 in. (24.9 x 38.6 x 28.6 cm)
Mounting Hole-To-Hole Distance: 5.90 x 5.90 in. (15.0 x 15.0 cm)
Screw Hole Size: Ø 0.472 in. (Ø 1.2 cm)
Cord Length to Controller: 240 in. (20 feet)
Cord Length to Plug: 96 in. (8 feet)

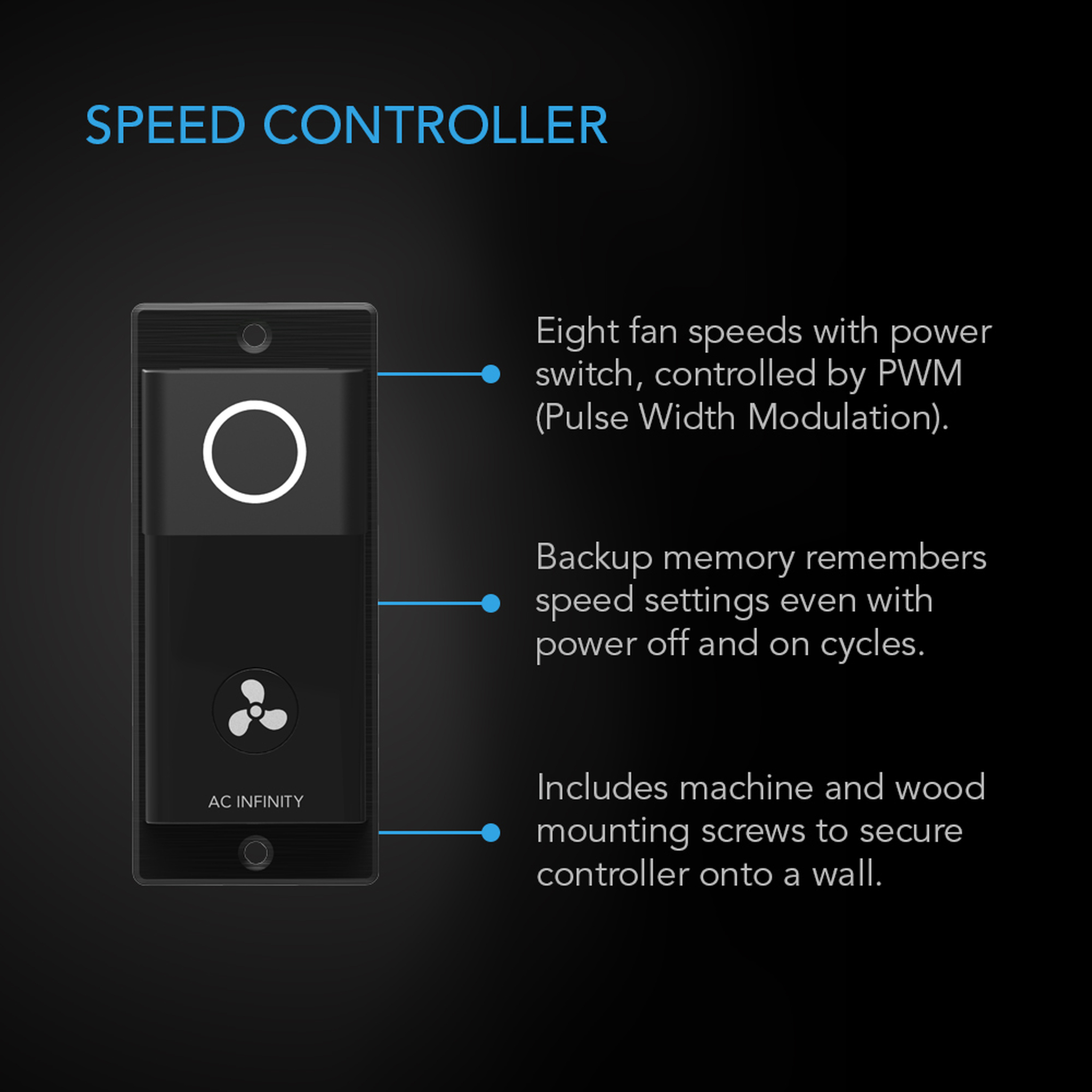

Product and Mounting Dimensions – Controller
Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance: 2.87 in. (7.3 cm)
Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
Product Performance and Technical Specs
Total Airflow: 1201 CFM
Total Noise: 48 dBA
Static Pressure: 1059 Pa
Voltage: 100-240V AC
Frequency: 50/60Hz
Max Power Draw: 250 W
Average Power Usage: 136 W
Current: 2.7 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Wall Adapter Input: 100 to 120V AC
Operating Humidity: 35 to 85% RH
Operating Temperature: 0 to 140°F
Ingress Protection: IP 44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS
Ac Infinity – CLOUDLINE S10, 10″ Duct Fan/ W LCD Thermal Control
