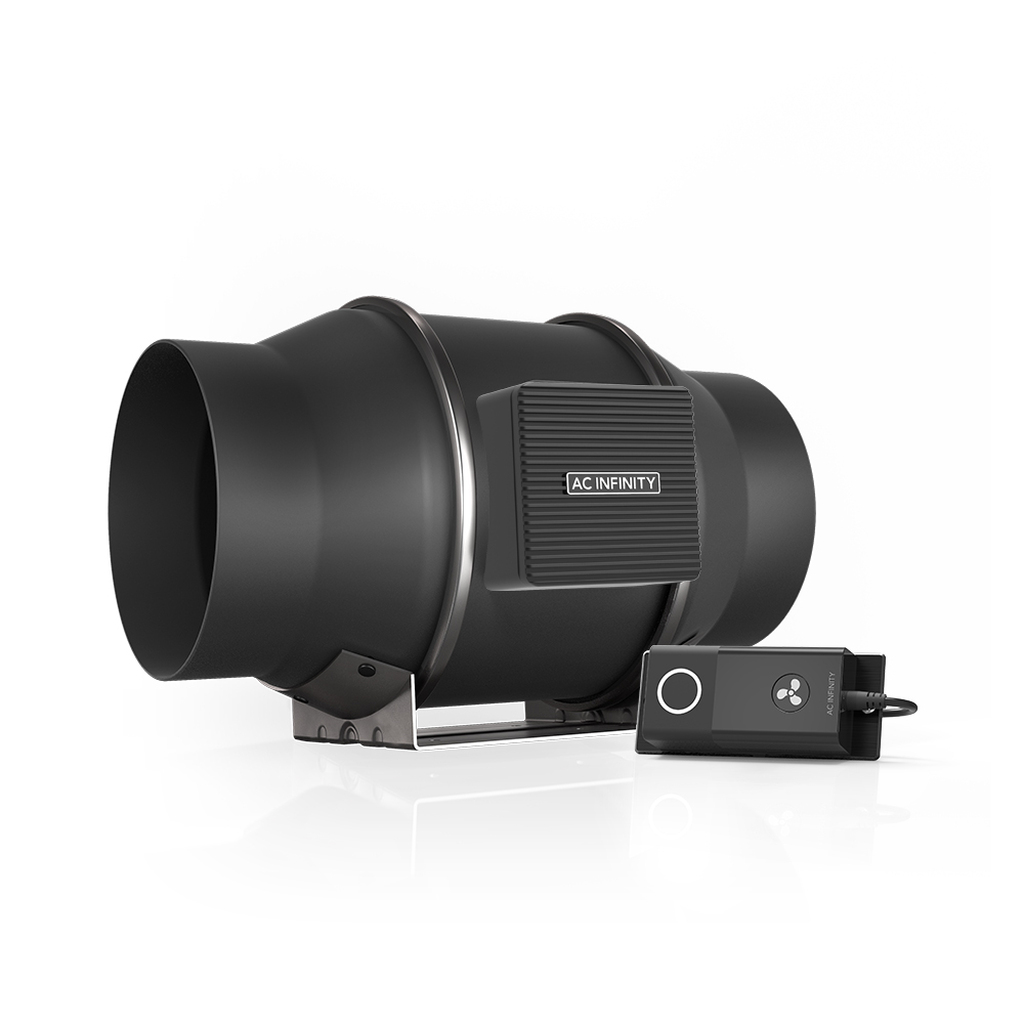

Product and Mounting Dimensions – Fan Unit
Duct Size: 6″
Total Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
Mounting Hole-To-Hole Distance:3.15 X 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size:Ø 0.236 in. (Ø 0.6 cm)
Cord Length to Controller:180 in. (15 feet)
Product and Mounting Dimensions – Controller :
Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance: 2.87in. (7.3 cm)
Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
Cord Length to Plug: 108 in. (9 feet)
Product Performance and Technical Specs :
Total Airflow 402 CFM
Total Noise 32 dBA
Static Pressure 503 Pa
Voltage: 100-240V: AC
Frequency: 50/60Hz
Max Power: Draw 64 W
Average Power Usage: 38 W
Current: 1.67 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 0 to 140°F
Ingress Protection: IP 44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS
