Product and Mounting Dimensions – Fan Unit
Duct Size: 8″
Total Dimensions: 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)
Mounting Hole-To-Hole Distance: 3.94 x 3.70 in. (10.0 x 9.4 cm)
Screw Hole Size: Ø 0.217 in. (Ø 0.55 cm)
Cord Length to Controller: 240 in. (20 feet)
Product and Mounting Dimensions – Controller
Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance: 2.87 in. (7.3 cm)
Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)
Cord Length to Plug: 96 in. (8 feet)
Sensor Probe Length: 144 in. (12 feet)
Product Performance and Technical Specs
Total Airflow: 807 CFM
Total Noise: 39 dBA
Static Pressure: 746 Pa
Voltage: 100-240V AC
Frequency: 50/60Hz
Max Power Draw: 110 W
Average Power Usage: 78 W
Current: 2.27 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 0 to 140°F
Ingress Protection: IP 44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS

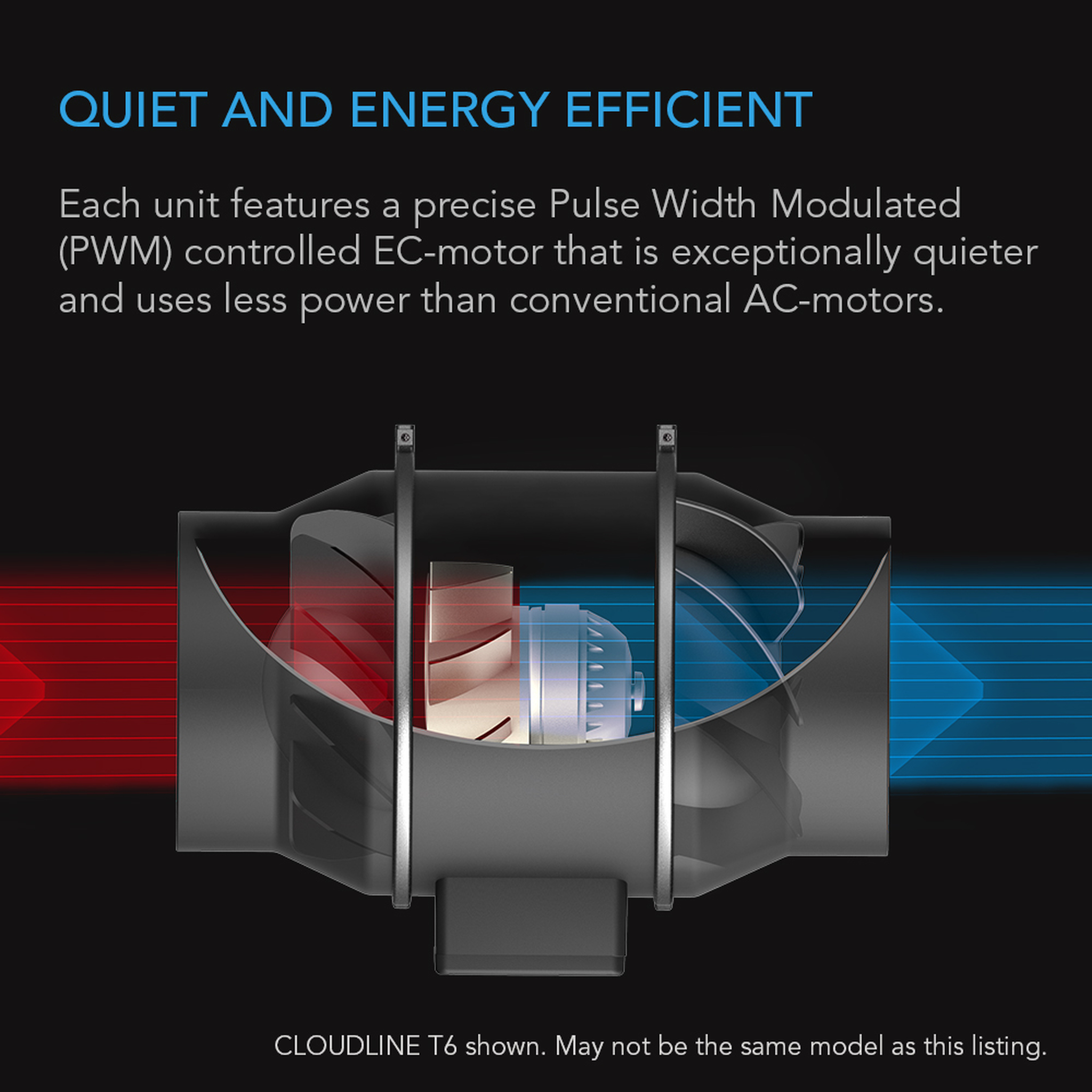

Ac Infinity – CLOUDLINE T8, 8″ Duct Fan/ W LCD Thermal Control
Category: INLINE DUCT FANS
Brand: AC Infinity
Description
