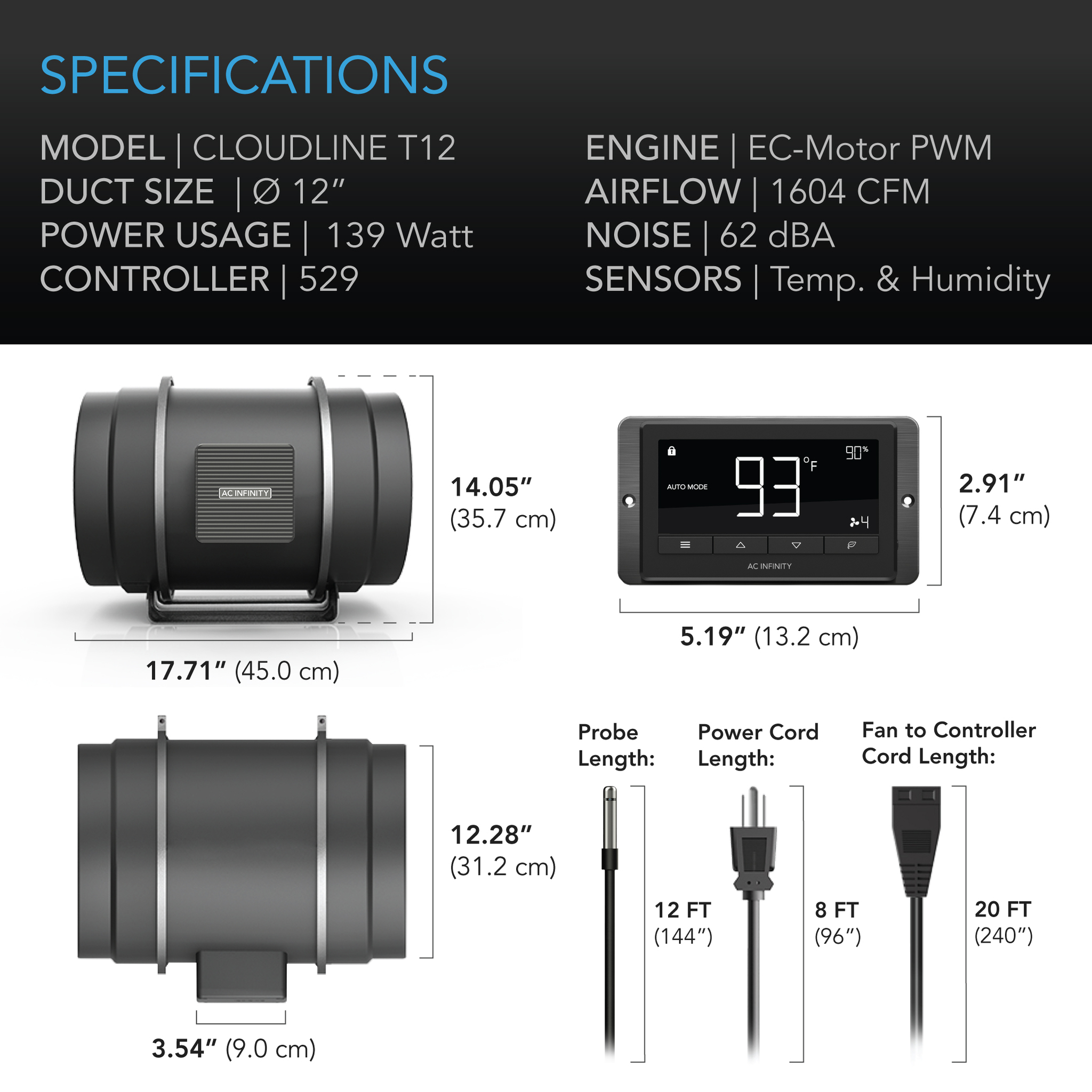

Product and Mounting Dimensions – Fan Unit
Duct Size: 12″
Total Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)
Mounting Hole-To-Hole Distance: 7.00 x 7.12 in. (17.8 x 18.1 cm)
Screw Hole Size: Ø 0.462 in. (Ø 1.18 cm)
Cord Length to Controller: 240 in. (20 feet)
Cord Length to Plug: 96 in. (8 feet)
Product and Mounting Dimensions – Controller
Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)
Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length: 144 in. (12 feet)
Product Performance and Technical Specs
Total Airflow: 1604 CFM
Total Noise: 62 dBA
Static Pressure: 818 Pa
Voltage: 100-240V AC
Frequency: 50/60Hz
Max Power Draw: 250 W
Average Power Usage: 139 W
Current: 2.5 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 0 to 140°F
Ingress Protection: IP 44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS
Ac Infinity – CLOUDLINE T12, 12″ Duct Fan/ W LCD Thermal Control
Category: AXIAL FANS
Brand: AC Infinity
Description
